TECHNICAL SPECIFICATION

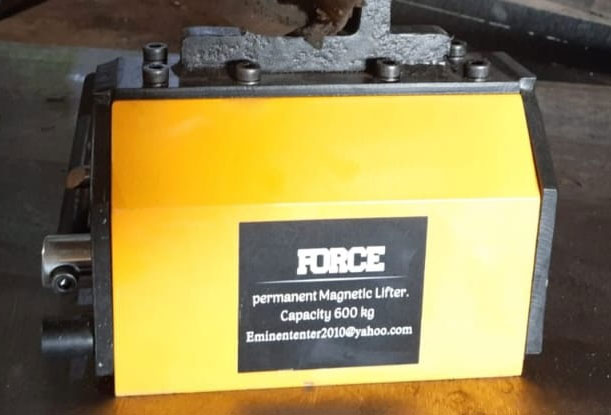

Magnetic Lifters are powerful material handling devices designed for lifting and transporting heavy metal objects safely and efficiently. These lifters use strong permanent magnets to hold ferrous materials such as steel plates, sheets, blocks, and cylindrical components without the need for electricity or clamps. Magnetic lifters are widely used in warehouses, workshops, factories, and construction industries for easy and secure lifting operations. Their compact design, high lifting capacity, and reliable performance make them an essential tool for industrial material handling.
| Model No. | Rated Lifting Capacity (Kg) | Cylindrical Lifting Capacity (Kg) | Max. Pull-Off Strength (Kg) | Max Operating Temp (°C) | L (mm) | B (mm) | H (mm) | Self Weight (Kg) | Min. Plate Thickness (mm) | Job Size L (mm) | Job Size W (mm) | Job Size Ø (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 811-0 | 100 | 45 | 300 | 80 | 89 | 64 | 69 | 3 | >4 | 1200 | 800 | 40-100 |
| 811-2 | 200 | 90 | 600 | 80 | 117 | 82 | 90 | 6 | >6 | 1200 | 800 | 40-100 |
| 812-0 | 300 | 125 | 900 | 80 | 150 | 81 | 91 | 7 | >8 | 2000 | 1200 | 40-160 |
| 813-0 | 500 | 225 | 1500 | 80 | 175 | 104 | 121 | 14 | >12 | 2500 | 1500 | 40-200 |
| 813-2 | 600 | 300 | 1800 | 80 | 209 | 102 | 120 | 23 | >15 | 2500 | 2000 | 50-300 |
| 814-0 | 1000 | 450 | 3000 | 80 | 275 | 132 | 140 | 37 | >25 | 3000 | 2000 | 60-350 |
| 816-0 | 2000 | 900 | 6000 | 80 | 426 | 150 | 170 | 73 | >40 | 3500 | 2000 | 80-400 |
| 817-0 | 3000 | 1350 | 9000 | 80 | 487 | 210 | 225 | 151 | >60 | 3500 | 2000 | 80-400 |
- Lifting Capacity: 100 kg – 3000 kg (depending on model)
- Magnet Type: Permanent Neodymium Magnet
- Safety Factor: 3 : 1 rated safety factor
- Operating Temperature: Up to 80°C
- Material Type: Suitable for steel plates, sheets, and round bars
- Operation: Manual lever control system
- Surface Requirement: Clean and smooth metal surface
- Weight: Lightweight and compact design
- Applications: Lifting, loading, unloading, and moving metal materials
Key Features
– Strong magnetic holding force
– No electricity required for operation
– Compact, lightweight, and easy to use
– High safety factor for secure lifting
– Durable and corrosion-resistant body
– Ideal for workshops, warehouses, and industrial use
